Data Center Yogyakarta

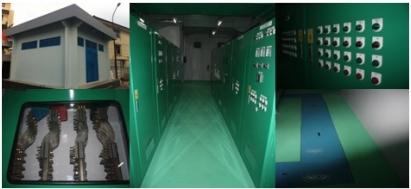

Robust & Reliable Electrical Source and Panel QDC Yogyakarta

• All Panels Manufactured Specifically for 200 KVA (PLN) & backup Generator
• Transformer Distributor & Cubical Are Co-located Inside the Panel Room
• Purpose Built Trench Ducted High Voltage Electrical Cable Routes
• External Secure Access for Maintenance Staff & Hardware Swap outs
• UPS : Powerware 2x225 kVa  (N +1 Configuration)
• QDC Yogyakarta provide AC and DC power in various configurations of amperage and voltage.
• N+1 redundancy in power distribution, UPS systems and generator backup
• 24 hours worth of generator fuel and contracts with multiple fuel providers

Stand Alone Building: 700 Sqm Available Data Centre

• 350 Sqm Per/Floor x 2 Floors – 60 x 42U Perforated Racks Per Floor
• Enclosed Perforated Rack w/- 19" 42 U, 10 A PowerProvision, 2 Ethernet 10/100 MPBS
• Support Space to Raised Floor
• ‘Meet Me Room’, Dedicated Fiber Optic to Jakarta IIX and OIXP

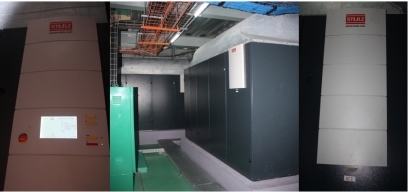

World Class Cooling System, Two Units Per Floor

• Uninterruptable Cooling System: 2 X STULZ (CyberAir 2, 101.9 kW) – Germany
• Precision N+1 Paradigm Up-Flow System
• Consistent 18-22 C Temperature & 40-60% Humidity

State of The Art Integrated Fire Suppression System

• Integrated PyroGen Piped Fire Suppression System
• State of Art Smoke, Heat & Fog Detection System
• Fire Suppression: FM 200 System (Gas CF3CF2FC(0)CFCF3)
• Fire Control Panel: NFS-320 (E)
• Smoke Detector: Photo FSP 851

QDC Yogyakarta Telecommunications Systems

• Brocade
• Juniper

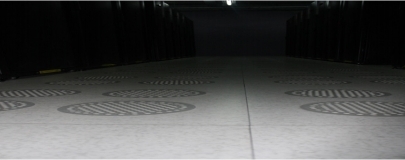

High Pressure Laminated Anti Static Raised Floor

• Uniflair (30 KFP) – Japan
• Distribution Loading: 3.1 k Sqm, Height: 50 cm (150 M/Ton/Sqm)
• Support Space to Raised Floor Ratio: 100+ %
• Adjustable to Rebalance with Various Rack Weights
• Interchangeable to Align with Hot/Cold Corridors
• Designed for Aircon Up flow Towards Hot Racks
